Quad Pn Mt N/R Int PM2Nri-F

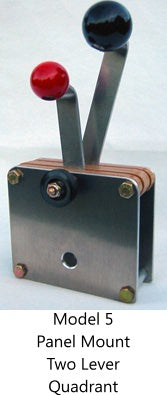

These quality quadrants have been in use for over 35 years in a wide variety of experimental and ultralight aircraft. All quadrants are made with AN standard hardware and aircraft-quality 6061-T6 or 2024-T3 Aluminum. All sizes and models can be utilized for a side mount, center mount, or dual-control hookup. Can be used in Pitts, Cub, Aeronca, Bakeng Deuce, Horizon 2, Dakota Hawk, Quicksilver, Mini Max, Dragonfly, X-Air, etc. If you have an aircraft, we have a quadrant that will fit your needs.Model #5 - Panel mount quadrant can be an internal reversing or internal non-reversing. Available in S-series only. One, two or three levers. Friction or non-friction. Four sizes available: Special series quadrants: Large Series 4-78" wide x 4" tall. 13 oz. Standard Series 4" wide x 3-1/2" tall. 11 oz. 3/4 series 3-7/8" wide x 3" tall. 10 oz. 1/2 series 3-7/8" wide x 2-5/8" tall. 8 oz. RV-series 4" wide x 4" tall. 12 oz. Panel Mount 4" wide x 3-1/2" tall 12 oz. Twin Engine 4-7/8" wide x 4" tall 15 oz. All weights are for two arms and friction. (Except twin engine). Measurements do not reflect Lever lengths.

Manufacturer Part #: PM2NRI-F-352
