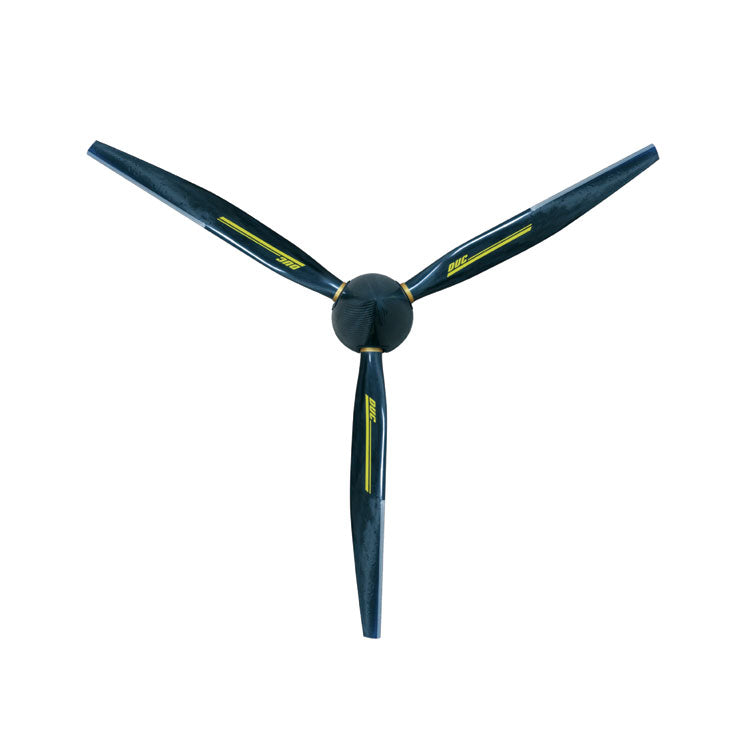

DUC 3 Blade Swirl-R Left 01-11-002

The aerodynamic properties of this propeller have been designed to have a "constant speed" effect. The blades that are made from unidirectional layers of carbon fiber prepeg epoxy and their structure has been defined in order to obtain the maximum stresses in torsion and bending. Therefore the effect of "constant speed" is not related to the deformation of the blade but its geometry and its particular profile.Because of the extra flat profile and low chord,excellent performance is obtained in both: Aerodynamic and acoustic performance, but also in fuel consumption.Thanks to the "constant speed" effect, there is very small engine speed difference between the aircraft on ground and in flight.This propeller allows for excellent performance throughout the flight envelope including: Improved efficiency at takeoff and climb rate due to higher engine speed Many cruise extension A high user comfort Propeller is available in Two-Blade and Three-Blade.For engines with high power, its structure can be reinforced (SWIRL-R).The Inconel SWIRL blade is protected with Inconel metallic reinforcement. It increases the life of the propeller and also its performance due to a change in its inertial behavior.Available Diameter:059.8", 063.8", 065.4", 068.1" Weight: - Two-blade Standard SWIRL 068.1" (6.00 lb) - Three-blade Standard SWIRL 068.1" (8.00 lb) - Two-blade Inconel SWIRL 068.1" (6.17 lb) - Three-blade Inconel SWIRL 068.1" (8.27 lb)Carbone Forge® hubThe hub of the propeller is manufactured using the patented Carbon Forged®. Made from layers of inidirectional carbon fiber epoxy prepregs, it saves the weight while having outstanding mechanical strength.

Manufacturer Part #: 01-11-002
