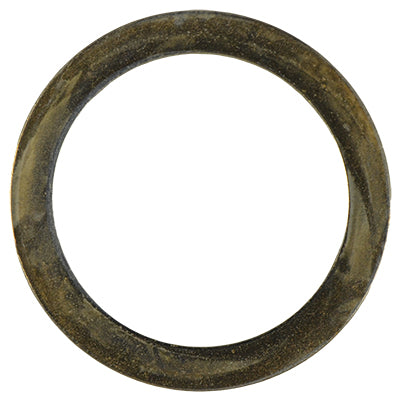

McFarlane Ring Grease Seal Flat - MC153-00800

Wheel Grease Seals and Kits Finally a low cost alternative! FAA-PMA approved for Cessna & Piper aircraft with Cleveland, and McCauley wheels.Sold individually or as convenient kitsEach kit contains everything required to service one wheel: grease seal rings, plates, snap rings and felts; even screws and washers when requiredWe have done the research so you don’t have to!Hard to find parts in stockSave $$$Future approvals will include Air Tractor, Beechcraft, Cirrus, Diamond, Mooney, and more!Applicable for a wide range of aircraftDirect replacementOver 50% savings! Reference Documents:Eligibility: Wheel to AircraftEligibility: Wheel Seal Components, CessnaWheel Seals Catalog Information Grease Seal Rings and Plates:P/NIDODThicknessFigMC153-003001-33/642-1/20.034AMC153-004001-45/642-5/81/32A153-005001-3/42-3/4*5/32BMC153-008001-53/642-23/641/32AMC153-010002-1/162-3/4*1/8BMC153-015002-1/162-5/813/64CMC153-300131-11/162-39/641/32A153-300142-1/162-5/811/64CMC153-300151-17/322-35/641/32AMC156-001001-3/43-22/321/8D*OD measurement does not include mounting tabs Grease Felt Seals:IDODThickness Snap Rings:IDODThicknessMC154-014001-3/42-5/81/8 MC155-001009/642-3/41/32MC154-003001-5/82-5/81/8 MC155-002009/642-1/20.025MC154-006001-3/42-13/32 1/8 MC155-118005/322-1/21/32MC154-009002-1/82-7/161/8 MC155-119005/322-3/41/32MC154-013002-1/82-1/23/16 MC154-300102-1/82-17/321/8 Dimensions are approximate and for identification only. Dimensions are in inches.APS BlackSteel brake discs and linings, brake bleed valves, and wheel bearing cups and cones also available.

Manufacturer Part #: MC153-00800
