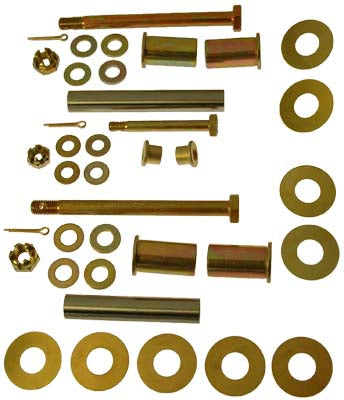

McFarlane Torque Link Kit Cessna Nose Gear - TL-KT-11

Solves and prevents many wheel shimmy problemsComplete McFarlane manufactured FAA-PMA kits include all commonly replaced torque link partsOnly McFarlane has shims in three thicknesses for a precision fitFits most single engine Cessna aircraftNow with specific model eligibility Catalog pages for nose wheel steering partsCan You Stop Nose Gear Shimmy? by Dave McFarlaneEligibility Notes:Note 1: TL-KT-8 and TL-KT-9 torque link kits are used on Cessna model aircraft with heavy duty landing gear that utilizes AN6 size (3/8-24 UNF) bolts in the upper and lower torque link joints. The normal duty landing gear uses AN4 size (1/4-28 UNF) bolts in the upper and lower torque link joints.Note 2: Aircraft models in this serial range may use one of two choices for McFarlane Torque Link Kits. The aircraft that have both upper and lower spacers measuring ~2 inches long will use McFarlane Torque Link Kit TL-KT-1 (containing two MC0543047-1 spacers). The aircraft that has an upper spacer measuring ~2.6 inches and a lower spacer measuring ~2 inches will use McFarlane Torque Link Kit TL-KT-2 (containing one MC0543047-1 and one MC0543047-2 spacer).Note 3: Aircraft models in this serial range may use one of two choices for McFarlane Torque Link Kits. The aircraft that have both upper and lower spacers measuring ~2 inches long will use McFarlane Torque Link Kit TL-KT-5 (containing two MC0543047-1 spacers). The aircraft that has an upper spacer measuring ~2.6 inches and a lower spacer measuring ~2 inches will use McFarlane Torque Link Kit TL-KT-4 (containing one MC0543047-1 and one MC0543047-2 spacer).Note 4: Aircraft models in this serial range may use one of two choices for McFarlane Torque Link Kits. The aircraft that have both upper and lower spacers measuring ~2 inches long will use McFarlane Torque Link Kit TL-KT-1 (containing two MC0543047-1 spacers). The aircraft that has an upper spacer measuring ~2.6 inches and a lower spacer measuring ~2 inches will use McFarlane Torque Link Kit TL-KT-7 (containing one MC0543047-1 and one MC0543047-2 spacer).Note 5: Aircraft models in this serial range may use one of two choices for McFarlane Torque Link Kits. The aircraft that have both upper and lower spacers measuring ~2 inches long will use McFarlane Torque Link Kit TL-KT-1 (containing two MC0543047-1 spacers). The aircraft that has an upper spacer measuring ~2.6 inches and a lower spacer measuring ~2 inches will use McFarlane Torque Link Kit TL-KT-11 (containing one MC0543047-1 and one MC0543047-2 spacer).Can't decide if you have the standard or heavy duty nose wheel?The bolt sizes on your torque link can help you decide. Use the following table to help you determine the correct torque link kit for your application.Width Across Hex FlatsBolt Total LengthBolt Dia.TL-KT-1TL-KT-1-HTL-KT-2TL-KT-4TL-KT-5TL-KT-6TL-KT-7TL-KT-8TL-KT-9TL-KT-10TL-KT-11.490- .5021.82- 1.88.311- .31200000001100.428- .4401.89- 1.94.246- .24900000000010.428- .4403.01- 3.07.246- .24900000100000.428- .4403.13- 3.20.246- .24920011120000.428- .4404.13- 4.20.246- .24900000000010.428-.4404.31-4.26.248-24902000000000.553- .5653.18- 3.24.371- .37400000002200.428- .4404.12- 4.20.248- .24900000000010.367- .3761.79- 1.84.188- .18911111110001.429- .4393.16- 3.24.248- .24900211000002

Manufacturer Part #: TL-KT-11
