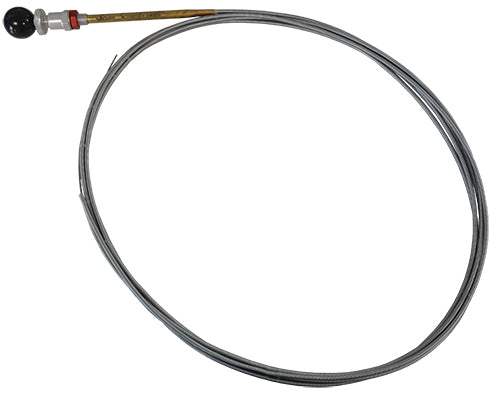

McFarlane Control Throttle Dual - MCT100D144-B

This control features a ball shape knob.Throttle Control for Dual Carburetor 912/914 Series Rotax Engines Innovative design allows a neat, clean installation without a clunky splitter boxSuper-smooth friction lockQuality all metal constructionHigh temperature Teflon lined for smooth, consistent control (Cheapy controls with poly liners will not tolerate engine temperatures)Available in 4, 6, 8, 12 foot and custom lengthsMeasured from panel fitting to end of conduit, wires extend 6 inches beyond conduitEasily trimmed to lengthVersatile threaded conduit terminals for easy adjustment (M6x1-6g x 1 inch thread)Adjustable cable stops to limit travelTwo knob styles available: Ball (-B) or standard barrel shapeManufactured to the same quality standards as McFarlane's FAA-PMA partsIncludes throttle hardware kit P/N 6408 with lightweight throttle return springs P/N 7140 to prevent throttle creep.Specifications:Panel Fitting: 1/2-20 UNF x 0.67 inch threadSlip Fit Conduit Terminals: 2 each with M6x1-6g x 1.00 inch threadConduit: 0.188 inch OD Teflon lined wound conduitInner Wire: Heavy duty 0.062 inch diameter, 1x7 stainless steel twisted wire per MIL-DTL-87161Travel (stroke): 3.75 inch maximumDesign Work Loads: Push: Not applicable (designed for pull loads only)Pull: 10 lbs maximumTypical Locking Force: 1 to 10 lbs (locking force dependent on friction lock engagement)Operating Temperature: -65 to 450 deg FSee McFarlane Dual Throttle Controls for further specifications.For more details, see the Press Release.These controls are not for use on certified aircraft, or for flight controls or flight control trim tabs.

Manufacturer Part #: MCT100D144-B
