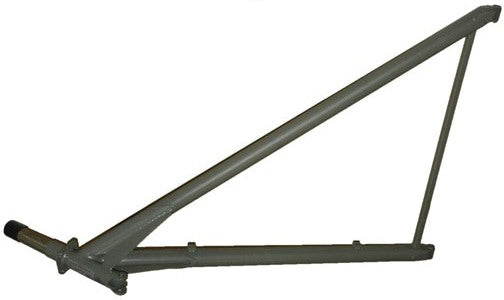

F. Atlee Dodge Landing Gear Left Hand Main 1-1/2" - 3225-1A

STCFAA-PMA Approval PendingHeavy Duty Main Landing Gear2000 lb gross weight modelAvailable in standard or 3" extended sizesStandard height gear 1-1/4" axle use p/n 3225-1 (LH) and 3225-2 (RH)Standard height gear 1-1/2" axle use p/n 3225-1A (LH) and 3225-2A (RH)3" Extended height gear 1-1/4" axle use p/n 3284-1 (LH) and 3284-2 (RH)3" Extended height gear 1-1/2" axle use p/n 3284-1A (LH) and 3284-2A (RH)The 3" extended landing gear gives more height and prop clearance, which is especially important for sand or gravel landings. FAA-PMA/STCPowder coat finish. Also available with gray epoxy primer for an additional $40.00 charge per leg, and gloss white or 20% semi-gloss black for an additional $70.00 charge per leg. Please make note under Special Instructions during checkout to request primer, white or black color. The additional charge will appear on your final invoice.Note: Can be used on models J-3, PA11, PA12 and PA14 but requires another STC modification involving additional parts and welding. Call for more information.

Manufacturer Part #: 3225-1A
