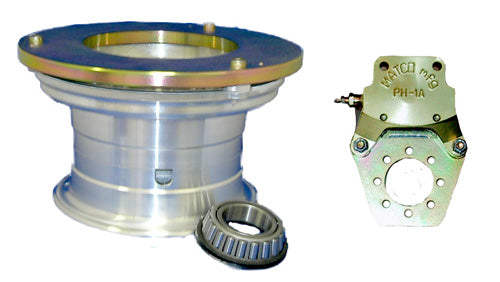

Matco Centrifugally Cast Wheels Internal Caliper W50S1.25

Matco Centrifugally Cast Wheels Internal Caliper W50S1.25

£1,229.20 GBP
£1,229.20 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.
May need ordering, please contact for lead times

W50S1.25 MATCO mfg produces a superior 5 inch wheel and brake assembly for use with aircraft requiring less than 1420 lbs per wheel. This model uses 1.25 inch TAPER/ROLL bearings. (Check the product comparison table for other bearing and caliper configurations). Dimensions The W50S1.25 is a 5 inch wheel with 4.6 inch width with an additional 1.23 inch caliper spacing. Bearing spacing is 2.6 inches and axle spacing is 1.45 inches. The total weight of this wheel and brake assembly is 6.6 pounds. The bearing axle diameter is 1.25 inches. Performance The W50S1.25 is designed for the following standards: Static Capacity: 1420 LBS Load Limit: 4260 LBS Maximum Accelerate/Stop Kinetic Energy: 189604 ft-lb Torque Rating (@450 PSI): 1988 in-lb Product Comparison Table

Manufacturer Part #: WHLW50S1.25
