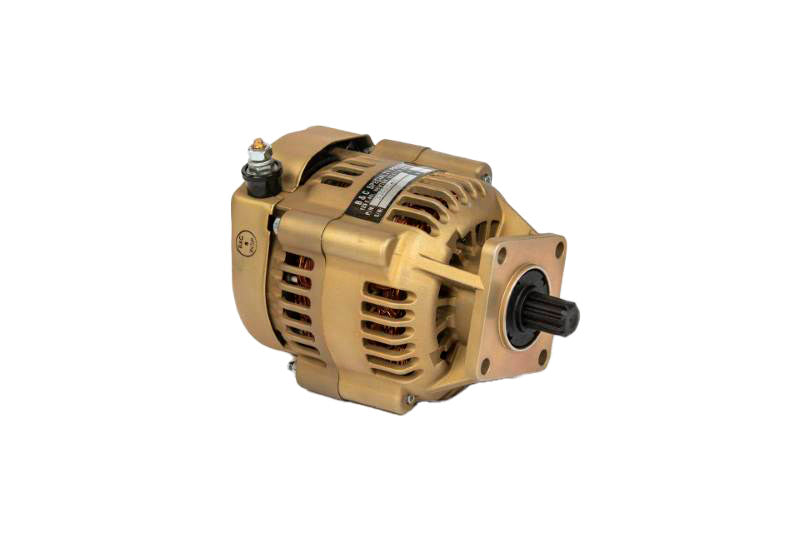

B&C Alternator Spline Driven Short 20-30 Amp BC425-H with SB1B-14 14V - for Homebuilt

The BC425-H is a high-performance spline-driven alternator that mounts on a standard vacuum pump accessory pad (AND20000). It may be used either as a primary or a stand-by alternator for a rated output of 20 – 40 amps @ cruise RPM. Constructed of all NEW materials (with absolutely NO remanufactured content), the BC425-H is designed for durable service, with heavy-duty sealed ball-bearings, two cooling fans, a dynamically balanced rotor, and a special shear section designed into the drive coupling. The BC425-H will NOT clear the tachometer cable and oil filter on stock Lycoming engines. It is designed mainly for Continental, Rotax, and Pratt & Whitney engines. The BC425-H is available for both 14 volt and 28 volt applications, and is externally-regulated. It should be appropriately matched with our LR3D, LS1B, or SB1B Controllers (depending on your application and electrical system configuration). NOTE: Use of non-B&C regulators/controllers may damage the alternator. For Experimental Aircraft ONLY

Manufacturer Part #: BC425-H-SB1B-14
