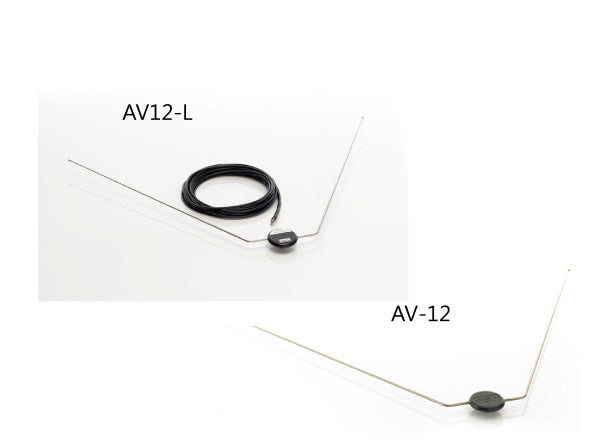

RAMI AV-12L Nav Antenna TSO

P/N AV-12L The AV-12 is a VOR/LOC receive only antenna which uses a highly efficient technique of molding the elements directly into a high-impact thermo-setting bakelite center insulator. The stainless steel elements are ground to close tolerances to provide a low profile. The antenna is designed to operate at speeds up to 350 mph and altitudes up to 50,000 ft. It has a drag force of 0.92 lb @ 250 mph. The AV-12L includes all of the same features as the AV-12 and a 25 ft cable with integral balun is also supplied. Order P/N 11-03992 for male BNC connector. Click here to download Outline Drawing in PDF format.

Manufacturer Part #: AV-12L
