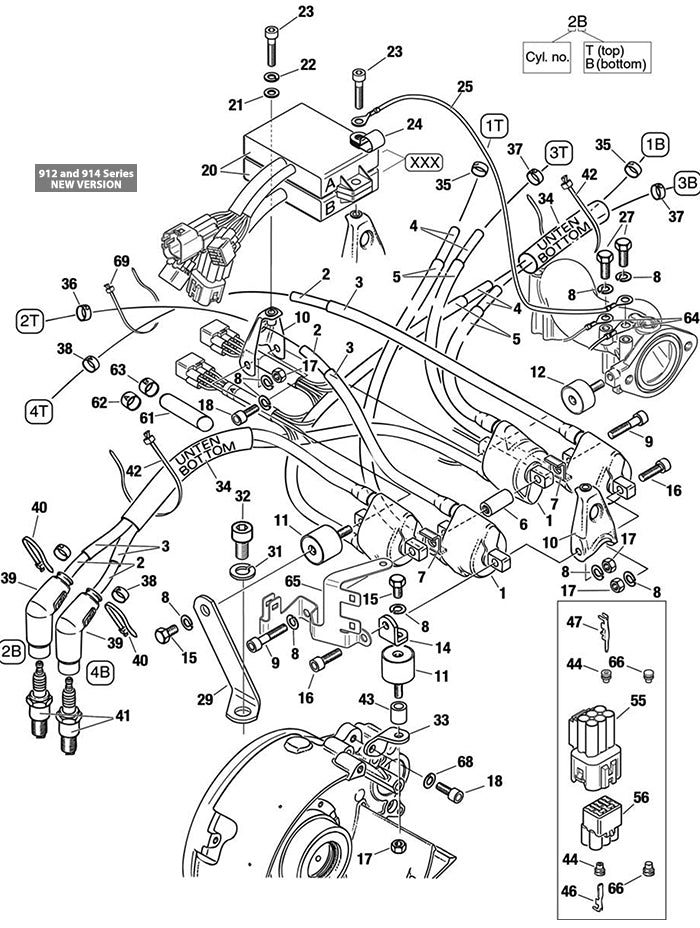

ROTAX 965-784 MASS CABLE ASSY.

- Items not illustrateda In a roll, Ignition cable 620 mm;b In a roll, Protection hose 560 mmc In a roll, Protection hose 500 mmd In a roll, Protection hose 450 mme Not necessary at intake manifold part no. 867688;f Marked with S/N; Introduced as per S/N as follows: 04.0388 with altered insulation only for spare partsg for crankcase part no. 886354, part no. 886358 and older;h At crankcase part no. 888364 or newer crankcase;i Not suitable for intake manifold part no. 867688;j Necessary at version with ring mount;k In a rolll Use part no. 842742 and 953390 only together; m SI-912-013 / SI-914-016 current issue See Maintenance Manual Heavy of the respective engine type, current issue.n In a roll, silicone hose 120 mmo SI-912-020 / SI-914-022 current issuep 1x lock washer A6 part no. 945751 is not needed after production-year 2010 on position between the bracket 2 part no. 851267 and the hex. nut M6.q Without magneto wheel consisting of 20, 21, 22, 23, 44, 46r Required for the following cylinders: 413235 / 413236 / 413245 / 413246 / 413185 / 413195. Danger of abrasion!s Short lines connected with 965-359 and 965-446. Length = 85 mm (instead of 70 mm).Explanations of symbols and statements in part number charts:N = Newly introduced part numbers.v. = Still valid. Part was replaced by compatible component and can not be supplied any longer by the producer. Existing stock may be used.AR = As required. This generally refers to shims, hose, wires, and cable. Measure the amount you need before ordering. Many times there will be multiple listings of different lengths with the same part number. Use individual part descriptions to determine the proper length needed.n.a or NLA = No longer available, no replacement from Rotax. Part is no longer available due to incompatibility to current production or unavailability of part.CALL = Please call for price, 800-247-9653

Manufacturer Part #: 965-784
