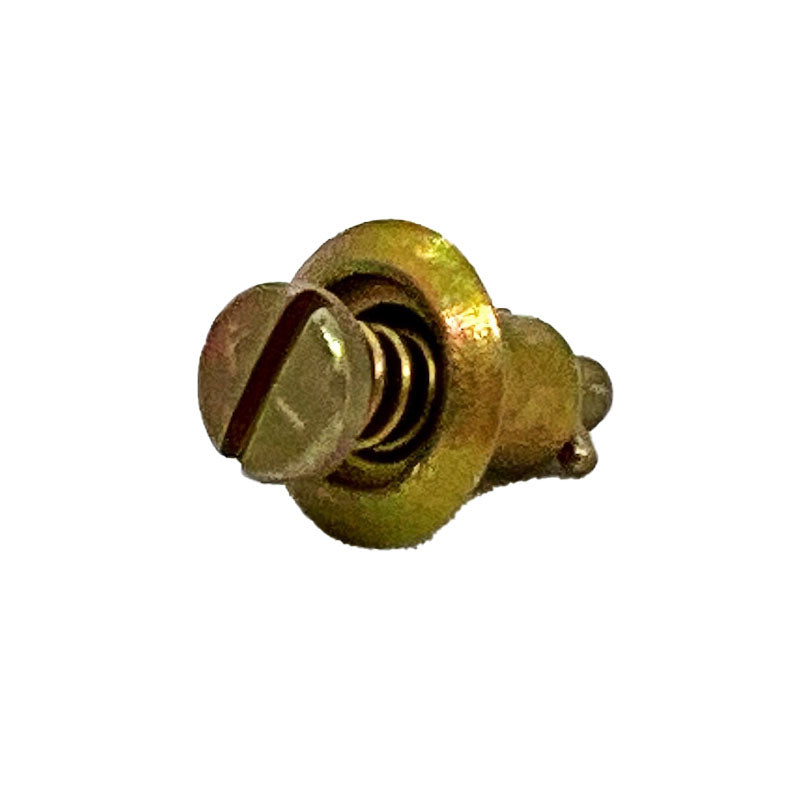

Camloc Fastener 2600-3S

2600 STUD LENGTH SELECTIONTotal material thickness “G” consists of the thickness of all materials to be fastened. This must include the thickness of the material “P” to which the stud assembly is attached, the material “F” to which the receptacle is attached plus gaskets (if used) and allowance for paint or other protective finishes. If the total thickness is near the upper limit of the stud grip range, the next longer stud should be used. This will still maintain positive locking of the fastener under vibration.P (panel thickness)..................... .062F (frame thickness................... + .062GRIP (total thickness).............. = .124 STUD SELECTION TABLE Using 212-12 Receptacle Total Grip Thickness Use 2600 .020-.059 2600-1 .060-.089 2600-2 .090-.119 2600-3 .120-.149 2600-4 .150-.179 2600-5 .180-.209 2600-6 .210-.239 2600-7 .240-.269 2600-8 .270-.299 2600-9 .300-.329 2600-10 .330-359 2600-11 .360-389 2600-12 .390-.419 2600-13 .420-.449 2600-14 2600, 2700 SERIES RETAINING WASHER Retaining washers are required for studs of -5 length or greater. Use split washer 2600- SW2 where it is desirable to have the stud fall away for minimum internal projection. Use internal tooth washer 2600-LW where it is desirable to retain the stud assembly rigidly. 2600, 2700 SERIES RECEPTACLES Rivet Holes 2600, 2700 Series Part No. Plain 212-12N Countersunk 212-12ND

Manufacturer Part #: 2600-3S
