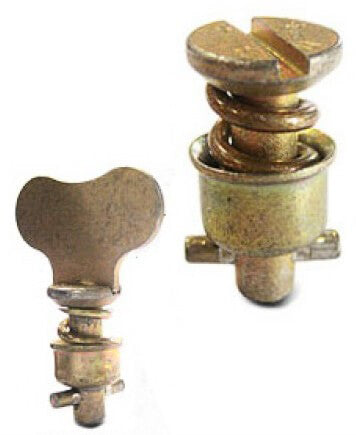

Camloc Fastener 4002-6S

To select the proper length stud, first select the grommet, for example4002-G. Next, select the receptacle, such as 214-16. After determiningthe total grip thickness, use the grommet column under which theselected grommet and receptacle appear. Use the dash number whichappears opposite the determined total grip thickness.Example: If the total determined grip thickness “G” was. 144, the studdash number for the above 4002-G grommet and 214-16 receptaclewould be -4. The stud part number would be 4002-4. Total Grip Thickness Range "G" Stud Dash Number 4002-G Grommet & 214-16 Receptacle 4002-N, 4002-0 Grommet & 214-16 Receptacle .021-.050 --* -1 .055-.080 --* -2 .081-.110 -2* -3 .111-.140 -3 -4 .141-.170 -4 -5 .171-.200 -5 -6 .201-.230 -6 -7 .231-.260 -7 -8 .261-.290 -8 -9 .291-.320 -9 -10 .321-350 -10 -11 .351-380 -11 -12 .381-.410 -12 -13 .411-.440 -13 -14 .411-.470 -14 -15 .471-.500 -15 -16 .501-.530 -16 -17 .531-.560 -17 - *4002-G grommet requires .090" minimum grip.

Manufacturer Part #: 3D0100-6ES
