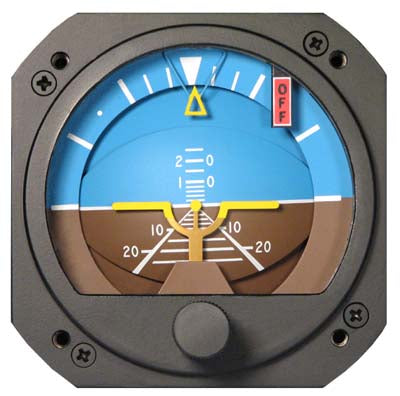

RC Allen Factory Overhauled RCA22-11

Note: Units are furnished with 8130-3 forms. Vacuum artificial horizon are controlled by air driven precision gyros to present the pilot with pitch and roll information. The attractive color scheme of blue sky and brown ground presents a realistic spherical display of flight. Unless otherwise indicated all instruments have a dark blue/brown display, fixed pointer and are unlighted. This is the "standard" display. Additional core charge added to purchase at time of checkout Exchange core must be a like core* and the core must be returned no later than 20 days from the invoice date to receive core credit. All RCA22 gyros are acceptable cores for 10-05439, 10-05870, 10-05872. Only RCA22-7F is an acceptable core for 10-05869.All RC Allen vacuum gyros run off of 4.5" Hg, erect time is 3 min. *Instruments equipped with a warning flag will let you know when vacuum has dropped below 3.8" Hg. Flag retracts from view at 4.3" Hg. Review "Model Specifications" tab before finalizing order* Instrument fits in a standard 3-1/8" panel cutout. 1/4"-18 NPTF nylon tube slip fitting is recommended for vacuum hose installation. 1/8"-27 NPTF nylon tube slip fitting is recommended for vacuum gage installation. Height: 3.38"Width: 3.38"Length: 6"Weight: 2.75 lbs.Made in the USA Meets of exceeds all requirements of FAA TSO C4cand Aeronautical Standard AS396B.
